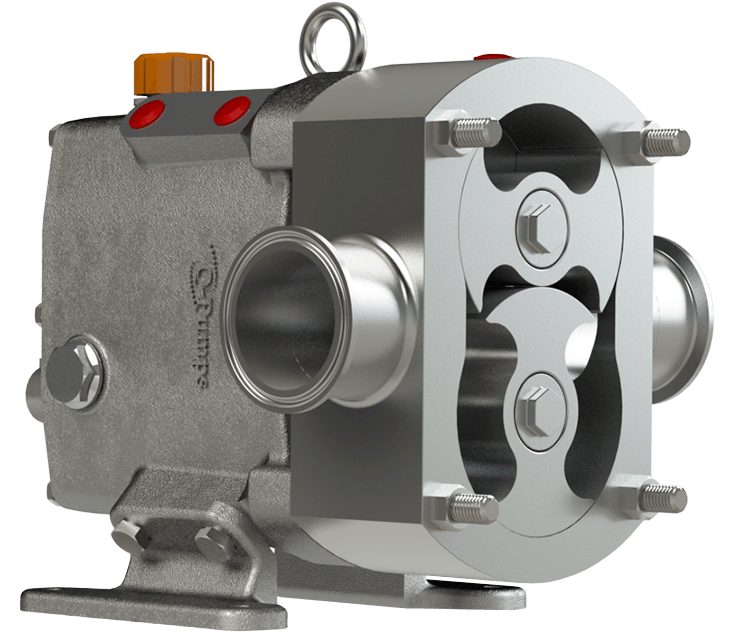

QL SERIES / Rotary Lobe Pump

• Accesible price
• The front access allows quick and easy cleaning
• The bi-wing rotors geothermic design offers a very high performance
• Thanks to the pumps versatility, it can be tailored to meet each applications need

• Has 4 different seal types to match each application

•  Standard seal material: Tungsten Carbide vs. Tungsten Carbide

•  Connections: Clamp (standard), SMS, Bevel Seat, DIN, and Brida available

•  Different rotor options: Bi-wing, Single-wing, Tri-lobe, Multi-lobe

•  Bearing box available in cast iron or stainless steel.

Reference Data

Flow: 441 gpm / 1,670 lpm

Pressure: 20 bar / 300 psi

Viscosity: 1,000,000 cP

Temperature: 149ºC / 300ºF
